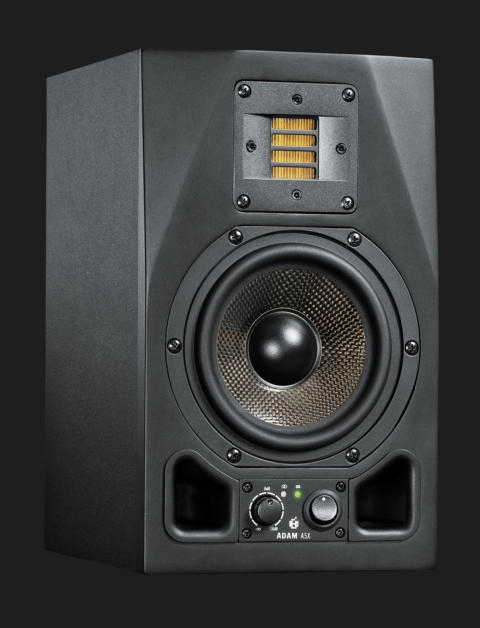

A5X | Loa kiểm âm | Loa Adam

Liên hệ Còn hàng

Tổng quan

WOOFER Number 1 Basket Ø 5.5" (145 mm) Voice Coil Ø 1.5" (32 mm) Cone Material Carbon/Rohacell/Glass Fiber TWEETER Number 1 Type X-ART Diaphragm Area 4 inch² (2420 mm²) Equiv. Diaphragm Ø 2" (56 mm) Velocity Transform Ratio 4:1 Diaphragm Weight 0.17 g ...

Chi tiết sản phẩm
Thông tin thanh toán
Hướng dẫn mua hàng

WOOFER

Number	1
Basket Ø	5.5" (145 mm)
Voice Coil Ø	1.5" (32 mm)
Cone Material	Carbon/Rohacell/Glass Fiber

TWEETER

Number	1
Type	X-ART
Diaphragm Area	4 inch² (2420 mm²)
Equiv. Diaphragm Ø	2" (56 mm)
Velocity Transform Ratio	4:1
Diaphragm Weight	0.17 g

BUILT-IN AMPLIFIERS

Woofer	1
Type	PWM
Amp. Power RMS / Music	50 W / 75 W
Tweeter	1
Type	A/B
Amp. Power RMS / Music	50 W / 75 W

CONTROL PANEL

Input Sensitivity	-∞ to +14 dB
High Shelf EQ > 5 kHz	±6 dB
Low Shelf EQ < 300 Hz	±6 dB
Tweeter Gain	±4 dB

INPUT CONNECTORS

Analog

XLR / RCA

GENERAL DATA

Frequency Response	50 Hz - 50 kHz
THD 90 dB / 1 m > 100 Hz	≤0.6 %
Max. SPL with sine wave acoustic 100 Hz to 3 kHz at 1 m	≥102 dB
Max. SPL per pair at 1 m	≥110 dB
Crossover Frequencies	2500 Hz
Input Impedance	30 kOhm
Panel	Front
Stereolink	Yes
Weight	14.6 lb (6,6 kg)
Magnetically Shielded	No
Height x Width x Depth	11" (280 mm) x 6.5" (170 mm) x 8.5" (220 mm)
Warranty	5 years (2 years warranty plus 3 years optional with product registration)
Delivery Contents	Cinch-cable, power cord, manual
