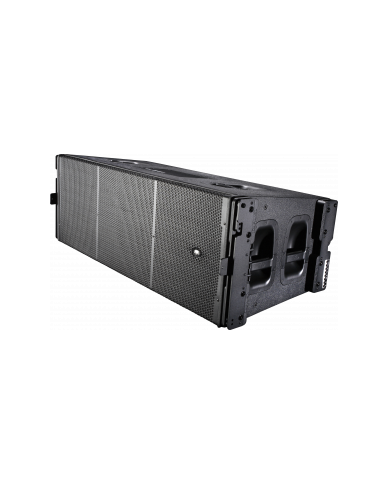

Aero50

Liên hệ Còn hàng

Tổng quan

Frequency Range (-10 dB) 45 Hz – 20 kHz Horizontal Coverage (-6 dB) 90º Vertical Coverage Splay Dependent Nominal Impedance LF 8+8 ohms Nominal Impedance MF 8 ohms Nominal Impedance HF 16 ohms RMS Power Handling HF 300 W RMS Power Handling MF 700 W RMS Power Ha...

Chi tiết sản phẩm
Thông tin thanh toán
Hướng dẫn mua hàng

Frequency Range (-10 dB)	45 Hz – 20 kHz
Horizontal Coverage (-6 dB)	90º
Vertical Coverage	Splay Dependent
Nominal Impedance LF	8+8 ohms
Nominal Impedance MF	8 ohms
Nominal Impedance HF	16 ohms
RMS Power Handling HF	300 W
RMS Power Handling MF	700 W
RMS Power Handling LF	2 x 700 W
Peak Power Handling	9600 W
Peak Power Handling LF	2 x 2800 W
Peak Power Handling MF	2800 W
Peak Power Handling HF	1200 W
On-axis Sensitivity 1W/1 m LF	99 dB SPL
On-axis Sensitivity 1W/1 m MF	104 dB SPL
On-axis Sensitivity 1W/1 m HF	112 dB SPL
Maximum Peak SPL at 1 m LF	136 dB
Maximum Peak SPL at 1 m MF	139 dB
Maximum Peak SPL at 1 m HF	141 dB
Connectors
Audio Input Connector	1 x speakON NL8
Audio Output Connector	1 x speakON NL8
Enclosure
Enclosure Construction	Birch Plywood
Finish	ISO-flex Paint
Color	Black
Dimensions ( H x W x D )	475 x 1.355 x 630 mm 18,7 x 53,3 x 24,8 in
Net Weight	85,0 kg ( 187,0 lb )
Components
LF Driver	15GNR
MF Driver	8MN
HF Driver	M-75N
Horn/Waveguide	BP-A48
Shipping
Carton Dimensions ( H x W x D )	540 x 1.500 x 810 mm 21,3 x 59,1 x 31,9 in
Shipping Weight	107,0 kg ( 235,9 lb )
