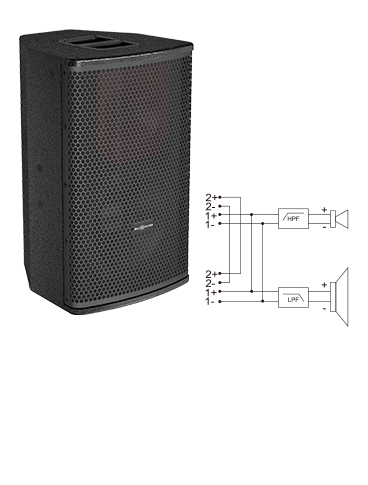

Type | Passive 1 Bass 25cm + 1 Treble |
Frequency Response(-6dB anechoic chamber) | 57Hz-20KHz |
Rated power(AES) | 250W |
Maximum Calculated SPL/1M | 130dB |
Horizontal Coverage Angle (Symmetrical) | 90° |
Vertical Coverage Angle (Symmetrical) | 60° |
LF Driver | Customized Audiocenter ferrite driver, 2.5” voice coil, 250W(AES) |
HF Driver | Customized Beyma ferrite driver, 1.0” exit, 1.75” voice coil, 70W(AES) |
Crossover Point | 1500Hz |
Impedance | 8Ω(+1, -1) |
1 Way Amplifier | 2pcs maximum, 4Ω |
Hanging Points | M8 screw |
Pole Mount | Base hole Φ35mm |
Input Connectors | 2×NEUTRIK® NL4MP |
Cabinet Material | CNC made of excellent wood |
Cabinet Color | Black is standard and default color.Consult with sales team for the other customized colors. |
Dimension(W×H×D) | 332×548×352mm |
Net Weight | 17.0Kg |
