L43/L83S

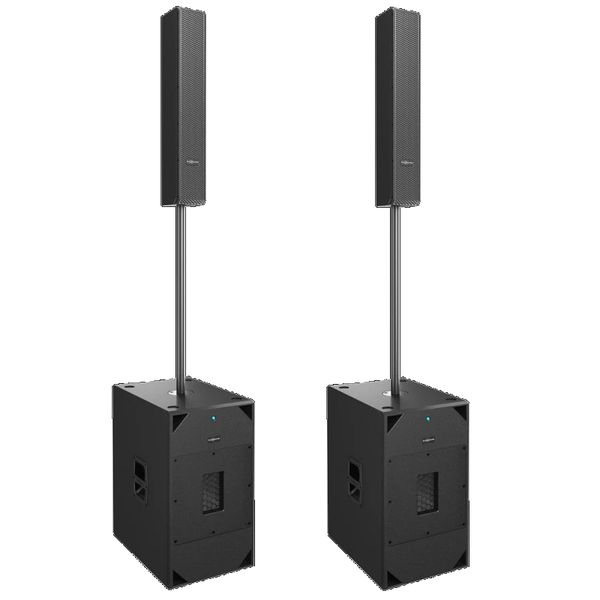

Hệ thống loa L43 + L83S là hệ thống loa cột active tích hợp DSP nhỏ gọn hoạt động đa năng. Hệ thống loa L43 + L83S bao gồm: loa cột toàn dải passive L43 với 4 loa toàn dải 3'' và loa siêu trầm active L83S có 2 bass 12 inch tích hợp DSP.
Thích hợp với Cafe, Karaoke, Show nhỏ....
-
Chi tiết sản phẩm
-
Thông tin thanh toán
-
Hướng dẫn mua hàng
|
Type |
Active DSP-controlled Column Speaker System |
|
Frequency Response(-6dB anechoic chamber) |
42Hz-20KHz |
|
Maximum CalculatedSPL/1M |
128dB |
|
Subwoofer |
Customized Audiocenter ferrite driver, 2pcs 12” driver |
|
Mid-high Driver |
Customized Audiocenter neodymium full-range driver, 4pcs 3” drivers |
|
Horizontal Coverage Angle(Symmetrical) |
100° |
|
Vertical Coverage Angle(Symmetrical) |
20° |
|
DSP |
|
|
Processor Crossover |
96KHz signal sampling frequency, 24bit precision controlled by DSP |
|
Class D amplifier |
|
|
Power |
2500W |
|
Frequency Response |
20Hz-20KHz(±0.5dB) |
|
Intermodulation Distortion |
＜0.05% |
|
Total Harmonic Distortion |
＜0.05% |
|
Protection |
DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection |
|
Cooling System |
Fans + air convection |
|
Output/Input |
|
|
Signal Input |
2×Combo (NEUTRIK® female XLR & Mono jack 6.35), 1×Bluetooth |
|
Signal Output |
1×NEUTRIK® male XLR |
|
Amplifier Output Link L43 |
1×NEUTRIK® NL4MP |
|
Column input Link L83S |
1×NEUTRIK® NL4MP |
|
Power Input |
3 pin power socket |
|
Working Voltage |
100-130V/60Hz or 220-240V/50Hz |
|
Cabinet |
|
|
Cabinet Material |
CNC made of excellent wood |
|
L43 base bracket hole |
Φ35mm (0/10° adjustable) |
|
L83S base bracket hole |
M20 base Φ35mm |
|
Cabinet Color |
Black is standard and default color. Consult with Audiocenter sales team for other customized colors |
|
Dimension(W×H×D) |
|
|
L43 |
125×515×150mm |
|
L83S |
374x660x538 mm |
|
Height for 1pc L43+1pc L83S+Pole |
1939mm |
|
Net Weight |
|
|
L43 |
3.5Kg |
|
L83S |
32Kg |
